CU/MICA/LSOH/OS/FRPVC VERMIN-PROOF, UV RESISTING & FIRE RESISTING TELEPHONE CABLE

Application:

This cable is used for communication and telephone systems and distribution cabling.

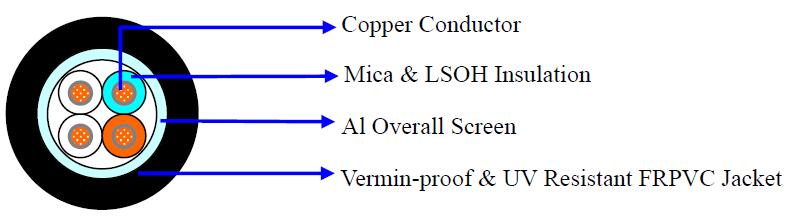

Construction:

CU/MICA/LSOH/OS/FRPVC VERMIN-PROOF, UV RESISTING & FIRE RESISTING TELEPHONE CABLE

Conductor: Plain Annealed Solid Copper to IEC 228 Class 1

Fire Barrier:Mica Tape.

Insulation: LSOH

Twisting:Two colored insulated conductors are uniformly twisted together to form a pair.

Shape:Circular

Overall Screen:Overall Polyester/ Aluminum foil screened plus 0.5mm2 copper drain wire

Outer Sheath: Vermin-proof & UV Resistant FRPVC

Sheath color:  Black

Temperature Rating:  0 ℃ to 40 ℃

Bending Radius: 6 x overall diameter

Marking:

The cable is marked with white or other colors as follows:

Caledonian Cables Co., Ltd

Type and size of cable

Manufacturing date

Meter Marking

The meter mark is printed every meter with an accuracy of 0.5%.

Other printing are available according to customer request.

Table 1. Technical Data

Number of Pair

Nom. Diameter of Conductor
(mm)

Nom. Diameter of Cable
(mm)

1

0.8

6.5

2

0.8

11.0

4

0.8

13.5

The data included in the present catalogue are merely indicative;

Caledonian Cables Limited reserves to itself the right to change them as its own discretion in any time.
